+ Type: Amateur UHF yagi, 18 elementes + Band(s): 900-928 MHz + Gain: 14.8 dBd, f/b 25 dB + Max power: ? W + Impedance: 50 ohms, N + Dimensions: Boom: 1.63 m + Weight: ? Kg + Manufactured: 19xx-200x
TA-33-M
*
10, 15, 20 Meter
*
3 Element
*
No measuring
*
Pre-drilled
*
Color coded
*
18-8 & 300 series Stainless Steel
*
2 Year warranty

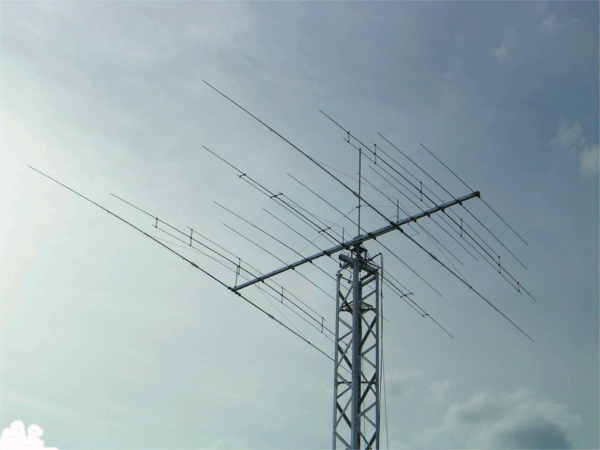

Bands 40 / 20 / 17 / 15 / 12 / 10
Bands 40 / 20 / 17 / 15 / 12 / 10
Gain (dBd) * 3,6 / 5,3 / 5,8 / 6,5 / 5,5 / 6,8
Gain (dBi) ** 10,6 / 12,7 / 13,4 / 14,2 / 13,3 / 14,7
F/B (dB) 15 / 22 / 21 / 18 / 19 / 19
VSWR
40 m CW/Europe setting:
7,00 - 7,05 - 7,15 1,6 - 1,1 - 1,8
40 m USA phone setting:
7,15 - 7,20 - 7,30 1,6 - 1,1 - 1,8
14,000 - 14,200 - 14,350 1,2 - 1,1 - 1,2
18,069 - 18,130 - 18,169 1,4 - 1,1 - 1,2
21,000 - 21,250 - 21,450 1,5 - 1,1 - 1,5
24,890 - 24,940 - 24,990 1,4 - 1,1 - 1,3
28,000 - 28,500 - 29,000 1,6 - 1,1 - 1,7
Elements (number) 13 (+ 6 hidden sleeve für 12/17m )
Active Elements 2 / 3 / 3 / 3 / 3 / 5
Max. Elementlength (m) 14.64
Boomlength (m) 7.9
Turning Radius (m) 8.5
Feedlines (number) 1 Coax 50 Ohm
Weight (kg) 73
Windload at 130 km/h 1.865 N / 2,33 m² / 25,3 feet²
Price *** 3.039,00 EUR
Bands 40 / 20 / 17 / 15 / 12 / 10
Gain (dBd) * 4,8 / 7,3 / 7,5 / 7,8 / 7,0 / 7,7
Gain (dBi) ** 11,8 / 14,7 / 15,1 / 15,5 / 14,8 / 15,6
F/B (dB) 25 / 18 / 25 / 22 / 22 / 15
VSWR
40 m CW/Europe setting:
7,00 - 7,05 - 7,15 1,7 - 1,1 - 1,8
40 m USA phone setting:
7,15 - 7,21 - 7,30 1,7 - 1,1 - 1,8
14,000 - 14,160 - 14,350 1,3 - 1,1 - 1,4
18,069 - 18,150 - 18,169 1,4 - 1,1 - 1,2
21,000 - 21,270 - 21,450 1,4 - 1,1 - 1,3
24,890 - 24,950 - 24,990 1,3 - 1,1 - 1,3
28,000 - 28,500 - 29,000 1,5 - 1,1 - 1,7

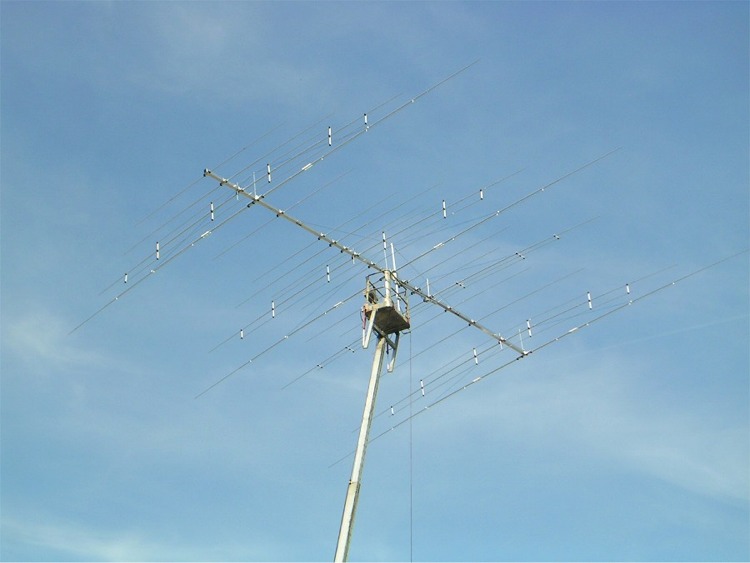

Elements (number) 18 (+ 8 hidden sleeve für 12/17m )
Active Elements 3 / 4 / 4 / 4 / 4 / 7
Max. Elementlength (m) 14.64
Boomlength (m) 11.9
Turning Radius (m) 9.16
Feedlines (number) 1 Coax 50 Ohm
Weight (kg) 115
Windload at 130 km/h 2.466 N / 3,09 m² / 33,37 feet²
Bands 80m
Gain (dBd) * 3,5
Gain (dBi) ** 9,9
F/B (dB) 20
VSWR (with the OptiBeam multi switch):
SSB 1: 3,770 - 3,795 - 3,830 2,0 - 1,1 - 2,0
SSB 2: 3,720 - 3,745 - 3,790 2,0 - 1,1 - 2,0
SSB 3: 3,680 - 3,705 - 3,750 2,0 - 1,1 - 2,0
CW: 3,500 - 3,520 - 3,565 1,7 - 1,2 - 2,0

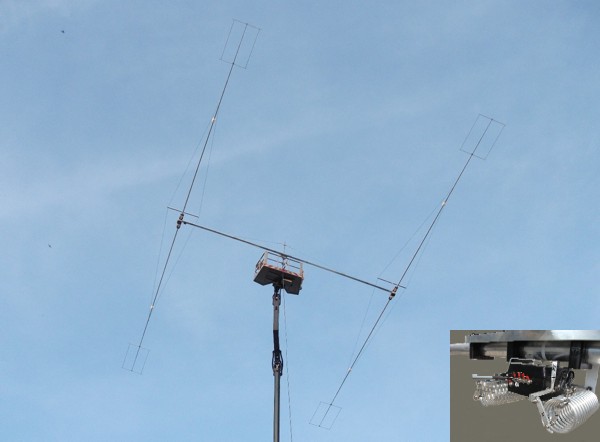

Elements (number) 2
Max. Elementlenght (m) 17,60
Boomlength (m) 10,00
Turning Radius (m) 10,20
Feedlines (number) 1 Coax 50 Ohm
Weight (kg) 90
Windload at 130 km/h 1.246 N / 1,55 m² / 16,8 feet²
Price incl. 5 KW 1:2 balun and
multi switch system *** 4.399,00 EUR
Price "plain SSB version"
incl. high quality 5 KW 1:2 balun *** 3.589,00 EUR

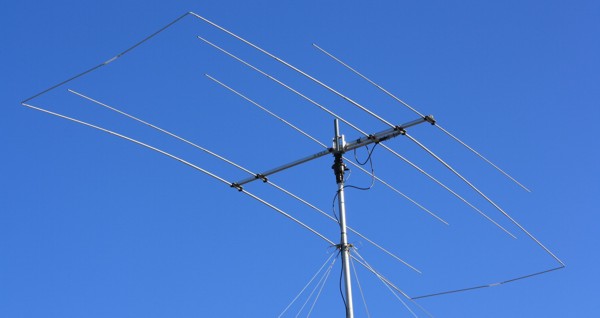

Bands 20 / 15 / 10
Gain (dBd) * 4,2 / 4,1 / 4,7
Gain (dBi) ** 11,5 / 11,8 / 12,5
F/B (dB) 25 / 15 / 25
VSWR
14,00 - 14,19 - 14,35 1,3 - 1,0 - 1,3
21,00 - 21,25 - 21,45 1,8 - 1,1 - 1,7
28,00 - 28,50 - 29,00 1,2 - 1,1 - 1,3

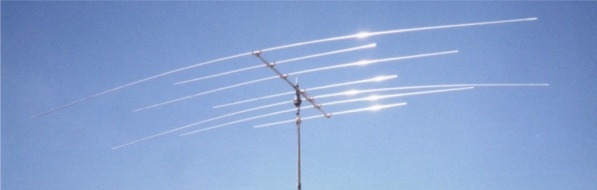

Bands 20 / 15 / 10
Gain (dBd) * 4,2 / 4,3 / 5,5
Gain (dBi) ** 11,5 / 12,0 / 13,1
F/B (dB) 15 / 15 / 30
VSWR
14,00 - 14,19 - 14,35 1,5 - 1,0 - 1,4
21,00 - 21,25 - 21,45 1,6 - 1,0 - 1,4
28,00 - 28,50 - 29,00 1,2 - 1,0 - 1,5

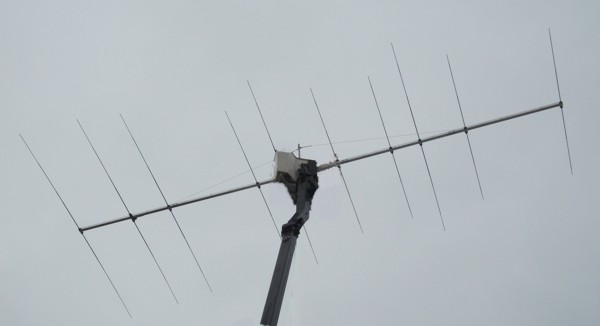

Elements (number) 7
Active Elements 2 / 2 / 3
Max. Elementlength (m) 10.96
Boomlength (m) 4.1
Turning Radius (m) 5.83
Feedlines (number) 1 Coax 50 Ohm
Weight (kg) 19
Windload at 130 km/h 438 N / 0,55 m² / 5,9 feet²

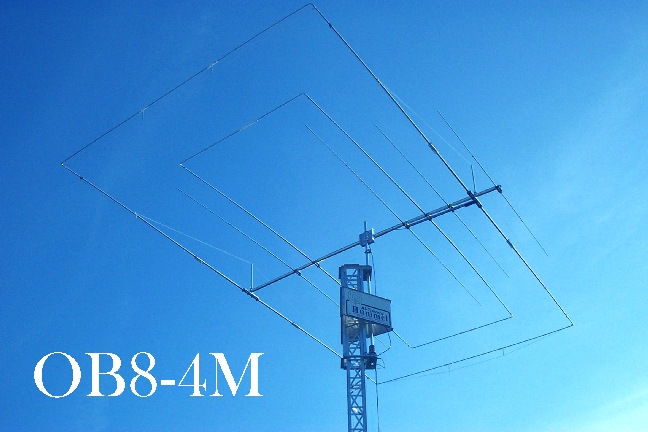

The OB8-4M is an extremely effective, compact and innovative Yagi for the classical four bands 40, 20, 15 and 10m. It is the first trapless Yagi for this frequency spectrum in the world with a single 50 Ohm coaxial feed and with two powerful Moxon Rectangles integrated in its design to improve performance. A mechanically brilliant power house without compromise, the next level of antenna performance!
The Par SM-50 occupies approximately 1/2 the footprint of a traditional 2 element yagi, yet features nearly identical electrical specifications. The radiator material selection results in a further reduction in size and weight over classical Moxons. Once the matchbox is installed onto the main radiator (two 10-32 screws), assembling the rest of the antenna including mast mounting and tuning, requires no tools.
